MDI / MDIS Series Chokes are made with wear resistant material to extend service life, with redundant O-Rings on the Bonnet Seals and Stem Seals that help prevent leakage.
Fully Guided Stems reduce imbalance and vibration. Control Discs provide ANSI Class III/IV Shut off.

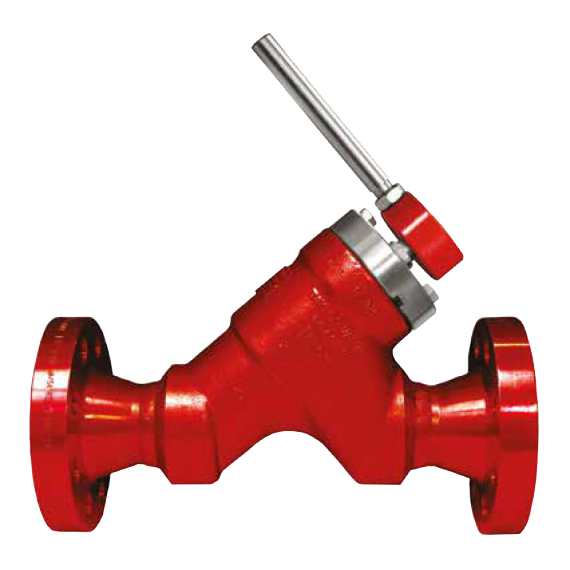

Taylor MDI / MDIS Choke Valves

Specs

Connection Size
1″, 2″, 3″
Connection Type
Threaded, Flanged, Butt Weld
Body Style
Angled
Body Material
1018/1020 CS, 316 SS
Process Fluid
Gas, Liquid, Steam
MDI Body Rating
1″ & 2″ – 5,000 PSI, 3″ – 3,000 PSI
MDI CV Range
1″ & 2″ – 0.7 – 23.86, 3″ – 11.2 – 84.65
MDIS Body Rating
1″ & 2″ – 5,000 PSI, 3″ – 3,000 PSI
MDIS MAWP
1333 PSI for Steam
MDIS CV Range
1″ & 2″ – 0.7 – 23.86, 3″ – 11.2 – 84.65

Features

  • Accurate Control – 90 degree rotation from Full Off to Full On.
  • Bolted Bonnet – Safety Bonnet is bolted into the body, it avoids the well-known risks of corrosion, cross threading, galling of threaded type connection in production environments.
  • Extended Mean Time Between Service -Robust design and liberal application of hardened materials, efficient flow-geometry means the valves offer maximum production potential and minimum service requirements.
  • Easy Maintenance – Repair parts can be installed in the field without removing the valve from the line.
  • Optional Features:
  • Choke Valves can have trims and actuators
  • custom designed for specific requirements. Such as special noise reduction trims, reduced port and maximum orifice trims, and for very high pressure or minimum pressure loss for a declining field.
