Enardo™ and Varec tank protection is engineered to provide the best protection in the industry. All tank hatches and vents are designed to prevent problems with safety, quality of tank contents and emissions. Our fully tested, integrated design makes all of our tank protection products some of the best in minimizing product losses, decreasing explosion risk, and reducing vapor emissions.
Explosion and environmental protection during processing, storage, and transport in a variety of industries are common concerns. Minimization of product losses, reduction of vapor emissions, decreasing explosion risk, and keeping operating pressures close to the maximum allowable tank pressure provide a unique challenge in the industry.

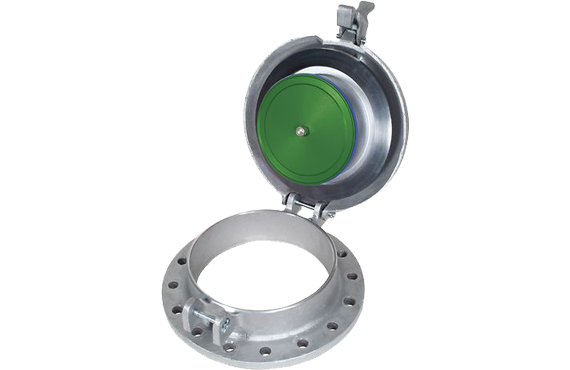

Vinson offers a wide range of Enardo™ products including the Series 850/950 Pressure/Vacuum Relief Valves, the 2000 and 2500 Emergency Pressure Relief Vents, ES800/900 Vent Valves, numerous Enardo™ spring loaded, deadweight, and lock down hatches. Enardo's new ES-665 offers the tightest emission control on the market today, read more about the ES-665 here.
Wireless monitoring options are now available for the Enardo™ Emergency Pressure Relief Valve Model 2000 and the Pressure Vacuum Relief Valve 850/950 Series. The wireless monitoring option allows the remote sensing of the open or closed position of the vent which enables immediate response to prevent problems related to safety, emissions, and the quality of tank contents.
Flame arrestors are designed to protect equipment from sources of ignition by preventing passage of a flame while still facilitating vapor flow. Enardo’s™ high performance deflagration and detonation arrestors operate via heat-conductive material to remove and reduce heat from the flame as it passes through the narrow passages of the flame cell.
Vinson provides the necessary tank management components for service, installation, and engineering to ensure the most advanced safety and emissions control. Often a Pressure Vacuum Relief Vent (PVRV) has no feedback loops and goes unmonitored in most tank management systems. With smart wireless, Enardo’s™ PVRV can provide vital pressure control as tank pressure fluctuates. As the last line of defense, EPRV or Emergency Pressure Relief Valves provide real time feedback in tank management to allow a faster response to emergencies. Fisher™ Regulator Technologies tank blanketing products provide extremely accurate pressure control on low pressure gas blanketing systems.
Vinson’s Surface Controls Manager offers configurable logic modules that include math and Boolean logic operators and browseable parameters, including parameters from other Suite applications. It also offers support for API industry standard, class-based logic bypass maintenance and Linked Action Blocks, accumulators and configurable accumulators. Vinson’s Surface Controls Manager has ON/Off run timers Pusle Out configurations and configurable alarming of “soft” values such as from Wireless HART Interface and/or Modbus Serial data.
Action Blocks are configurable control logic modules that have both math and Boolean logic operators. They are supported and browseable parameters that also include parameters from other suite applications. They allow users to:
The Surface Control Manager program supports up to 144 action blocks and 36 sets of utilities. Three versions of the program are provided for the ROC800 with increasing quantities of action blocks and utilities to be fit your application. A single version of the program with 48 action blocks and 12 utilities is provided for the FloBoss 107.
Capable of virtually all math functions executable in FST’s, it also supports functions like: math, comparison, bitwise, Boolean, logic, and arrays. Special functions include: sum, power, modulus, absolute, min/max, integer, iif. The intuitive expression editor provides character error feedback of incorrectly entered expressions, as well as verification of valid expressions with numerical result. Boolean Fan of discrete and integer values provides a method for increased throughput of data across DRTU nodes.
