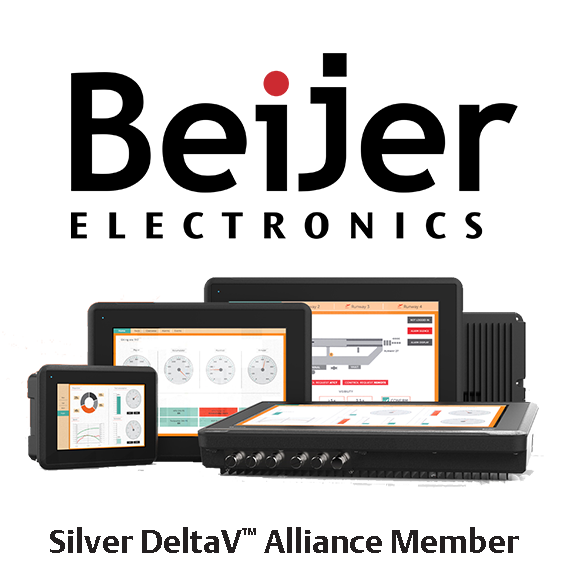

Beijer Electronics X2 extreme panels are certified by all major classification societies.
Designed to perform in rugged outdoor environments and in hazardous areas where gases, vapors and dust are present. Extended environmental capabilities include operating temperatures from -30°C to +70°C, high vibrations and high-pressure wash-downs.

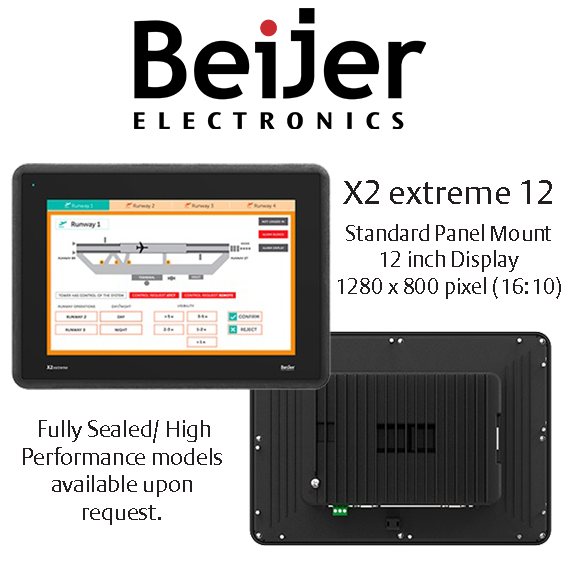

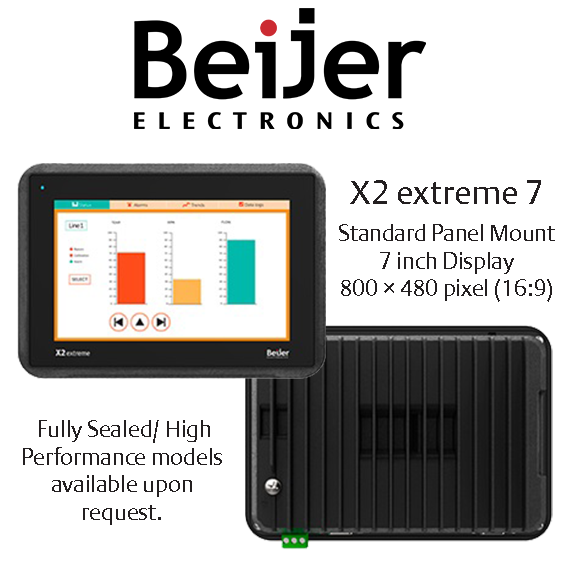

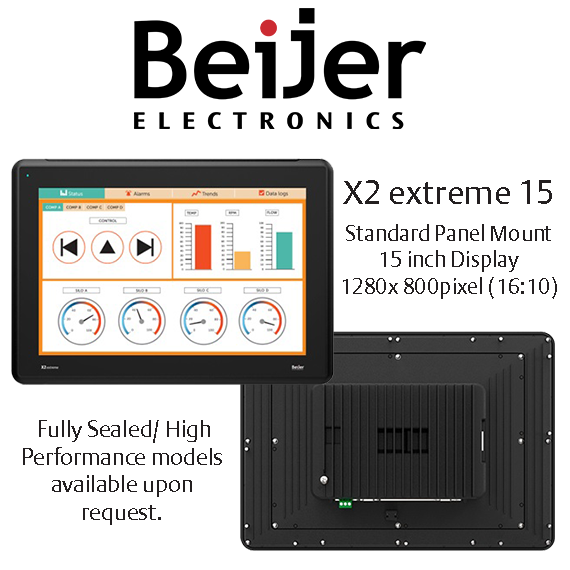

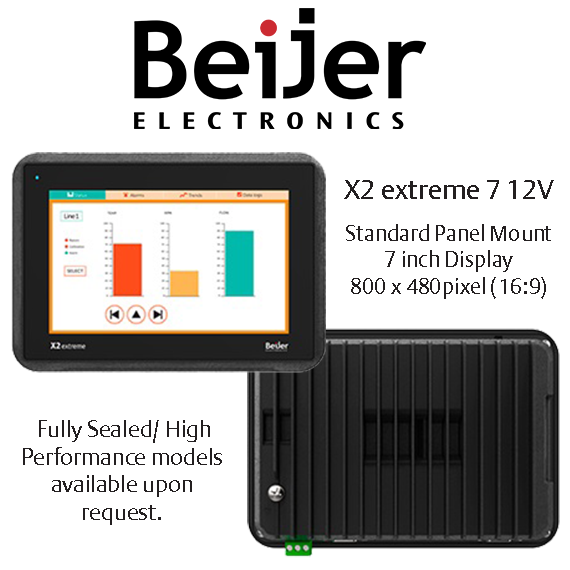

X2 extreme panels are available in 7, 12 and 15 inches, all in 3 versions: Panel mount standard and high-performance versions, and fully sealed high-performance versions. All high-performance versions offer high brightness display and optional integrated CODESYS PLC functionality.

X2 extreme by Beijer Electronics

Play Video

People & Technology. Connected.

Play Video

Concept and design-Beijer Electronics X2 extreme rugged HMIs

Play Video
Beijer Electronics X2 extreme- Rugged HMIs

Specs

Screen Size
7"-15" - 800 × 480 pixel (16:9) to 1280 × 800 pixel (16:10)
Touch Screen
TFT-LCD
Memory
1.5 GB- application memory
Ethernet
1x100 Mbit
Temp
-30°C to +70°C operating temperature
Marine Approvals
DNV GL, KR, LR, ABS, CCS, BV, NK
UL
Class I Div 2, ATEX/IECEx Zone 2,22

Features

  • Certified for hazardous environments where gases, vapors and dust are present.
  • Extreme operating temperature: -30°C to +70°C operating temperature range guarantees trouble-free use in the harshest environments.
  • Panel mount: Panel mount versions hold IP66, NEMA 4X/12 and UL Type 4X/12 ingress protection rating for the front and conform to ATEX Zone 2 and ATEX Zone 22 certification.
  • The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates.
  • Marine: KR, LR, ABS, CCS, BV, NK, DNV GL. The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.
  • iX Software: The iX software gives you smart communication tools. iX combines top-class vector graphics and easyto-use functions that provide reliable operation, and almost limitless connectivity to your other equipment.
  • Dimmable backlight: comfortable and safe operation in high and low ambient light conditions. Backlight is continuously dimmable to very low brightness.
  • High vibration: Panels are tested to 4 g RMS sweep sine for vibration and 40 g 11 ms half sine for shock.
  • Wide screen format: X2 panels offer wide screen format, designed to succeed the traditional 4:3 square aspect ratio.
