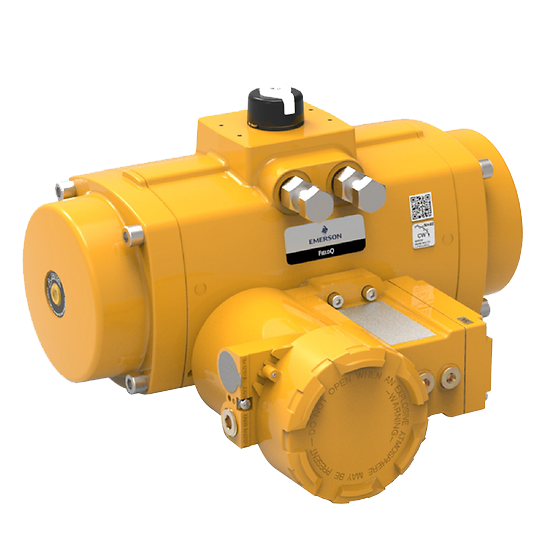

FieldQ is an integrated rack & pinion actuator concept with a base actuator and various control modules for control and feedback signals.
FieldQ are designed to operate quarter turn valves or any other quarter turn application. FieldQ consists of 9 actuator sizes (spring return or double acting) and 5 control modules for conventional wiring or with bus communication protocols like AS-Interface or Foundation Fieldbus.
FieldQ Actuator

Specs

Power Source
Pneumatic
Product Type
Pneumatic Rack and Pinion Actuator
Actuation
Quarter-turn
Certifications
ATEX, PED and Machinery Directives, FM CSA, IECEx and Inmetro. This product is only intended for use in large-scale fixed installations excluded from the scope of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2).
Control Type
On/Off, Positioning, Modulating, ESD
Valve Type
Ball, butterfly, plug and any other quarter turn application
Operating Temperature
Standard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options
Torque
9 sizes
Operating Pressure
Up to 8.3 bar / 120 psi

Features

  • Reduce commissioning cost by the easy to mount single unit.
  • Provide maximum flexibility in various applications with the modular design.
  • Use the Q-Series Valve Operating System in compact installations benefiting from the low profile.
  • Prevent unplanned Plant-Down-Time using the PlantWeb™ or NAMUR NE 107 connectivity with predictive diagnostic capabilities.
  • A single electrical connection point, reducing wiring complexity.
  • One Control Module for the full actuator range, reducing stock levels of various spare parts.
  • One source of supply for Valve Operating Systems, reducing sourcing complexity.
  • Robust and durable spring-return or double-acting actuator design.
  • Output torque ranging from 47 to 1676 Nm (5.5barg) or 413 to 14874 lbf.in (80pisg).

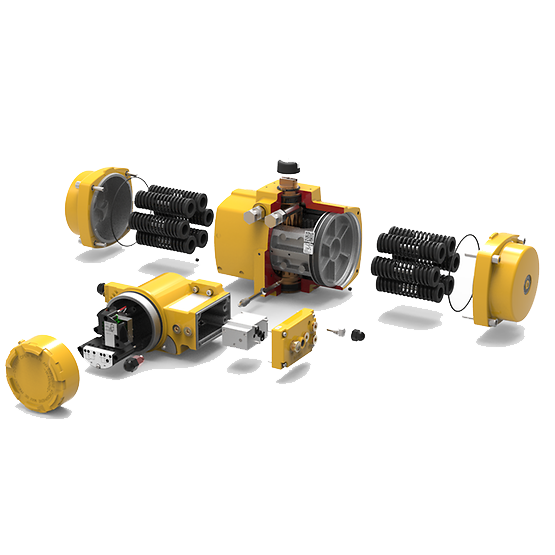

  • Easy exchangeable cartridges for pilot valves, limit switches or booster blocks.
  • Standard ”Breather” function protects spring chambers for corrosion.
  • Proof enclosure, prevents ”hot-work-permits” or down time for switch adjustments.
