The MCX Series pressure and flow control valves feature a superior design for unequaled throttling and accuracy.
Unique sealing and fluid flow dynamics permit compliance with current environmental (FTE) requirements.

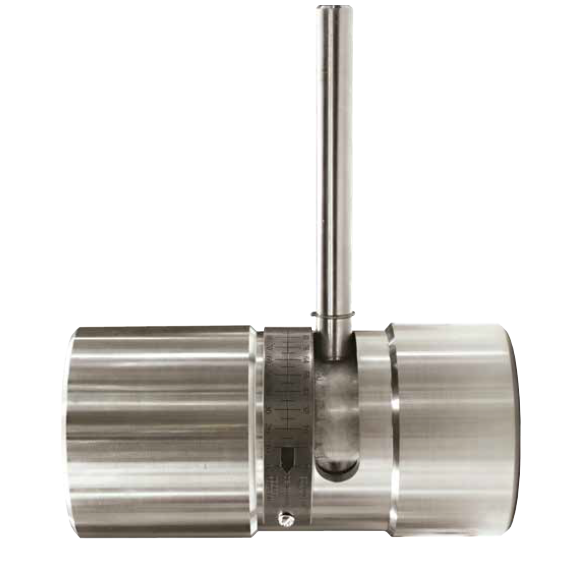

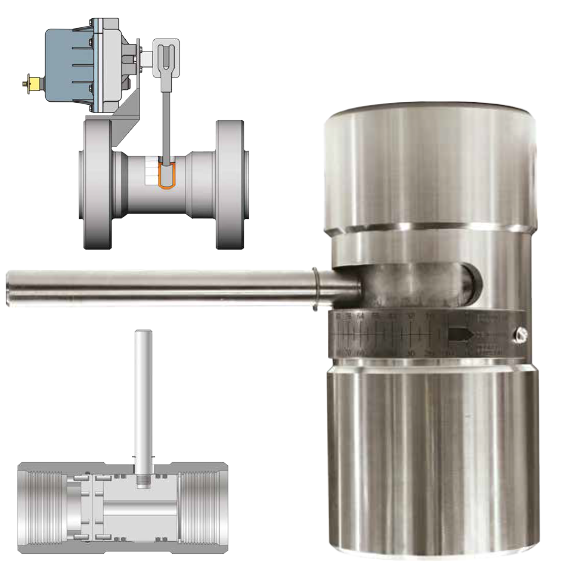

Taylor MCX Series Choke Valves

Specs

Connection Size
3″, 4″, 6″
Connection Type
Threaded, Flanged, Butt Weld
Body Style
Inline
Body Material
1018/1020 CS, 316 SS
Process Fluid
Liguid, Gas, Vapor
Max. Working Pressure
3,000 PSIG
CV Range
11.2 – 279.83

Features

  • Accurate Control - Superior design is unequalled for throttling control and accuracy. Unique sealing and fluid flow dynamics permit compliance with current environmental requirements.
  • Extended Mean Time Between Service - Robust design and liberal application of hardened materials, efficient flow-geometry means the valves offer maximum production potential and minimum service requirements.
  • Easy Maintenance - Choke valves are designed to provide simple straightforward disassembly with no special tooling or fixtures.
  • Optional Features - Choke valves can have trims and actuators custom designed for specific requirements, such as, special trims for noise reduction and sand control, several trims are available to accommodate high pressure flows or minimum pressure loss applications.
