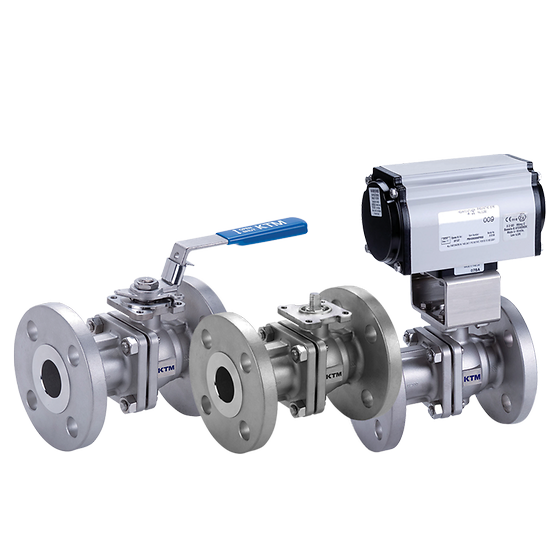

K-Ball Figure 190 Floating Ball Valve
K-Ball Figure 190 split body flanged ball valves are general purpose ball valves available in a variety of material configurations and featuring the patented SEALMASTER� shaft seal that provides exceptional fugitive emissions performance.
K-Ball Figure 190 Floating Ball Valve

Specs

Size range
DN 15 (NPS �) to DN 300 (NPS 12)
Valve Bore
Full bore
Valve Type
Two piece, split body ball valve with flanged ends
Pressure rating
ASME 150/300, DIN PN 10/16/25/40, JIS 10K/20K
End Connection
Flanged ASME 150, 300 or DIN PN 10/16, 25/40 or JIS 10K, 20K
Body Material
Carbon steel or stainless steel

Features

  • Patented SEALMASTER� shaft arrangement
  • Double shaft sealing complies with TA Luft fugitive emission requirements
  • ISO 5211 top mounting pad for simple automation
  • Blow-out proof shaft
  • Investment casting for DN 100 (NPS 4) and under, carbon steel or stainless steel bodies
  • F190F Fire safe tested to API 607 5th edition / ISO 10497:2004
  • Anti-static design according to EN 1983 / ISO 17292
  • Locking device
  • Various seat material options
  • Tightness to EN 12266-1, Rate A
  • Optional casting per AD2000-W0
  • Patented �POSILOCK� handle for DN 15 - 50 (NPS � - 2)
